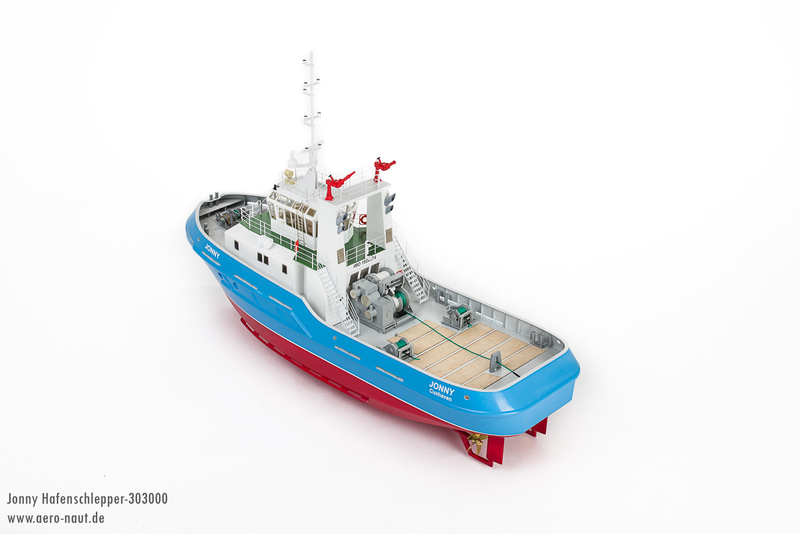

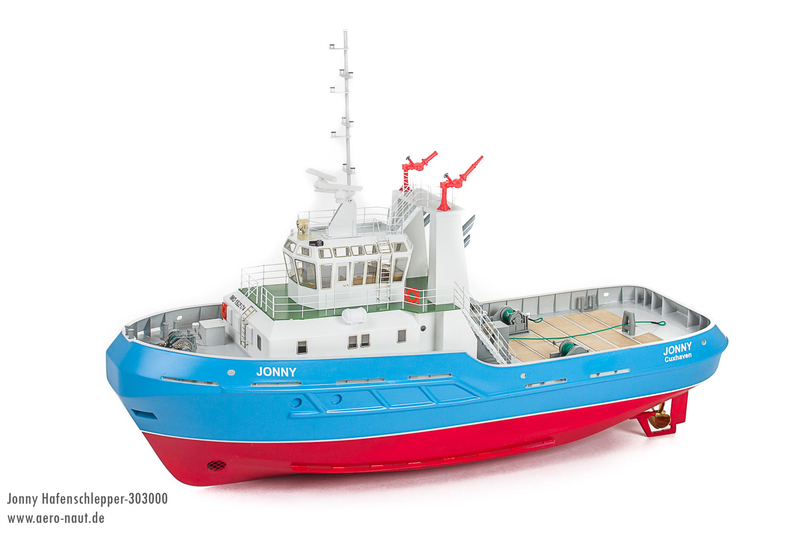

Jonny Harbor Tug
Article no .: 303000
Category: work ships, ship models
Difficulty level construction: 4/5 (advanced)
Model version : kit with finished hull
Material hull: GRP

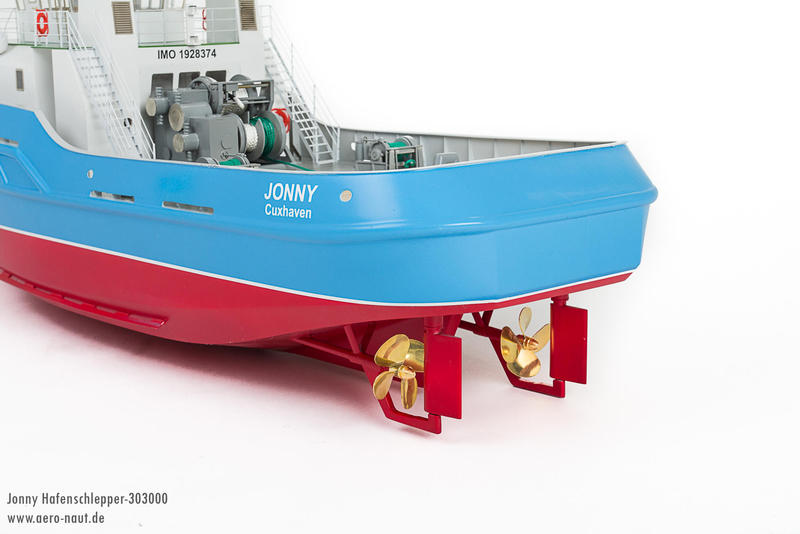

Jonny is a functional model that every model maker will enjoy. The kit impresses with high quality materials and rewards with a perfect result. The voluminous hull is made of fiberglass, all positions for hull openings are molded. The model is delivered with 2 shaft drives and 2 oars, a Kort nozzle can be retrofitted. The drive is also possible with a Schottel drive, for the installation of which can be found in the instructions.

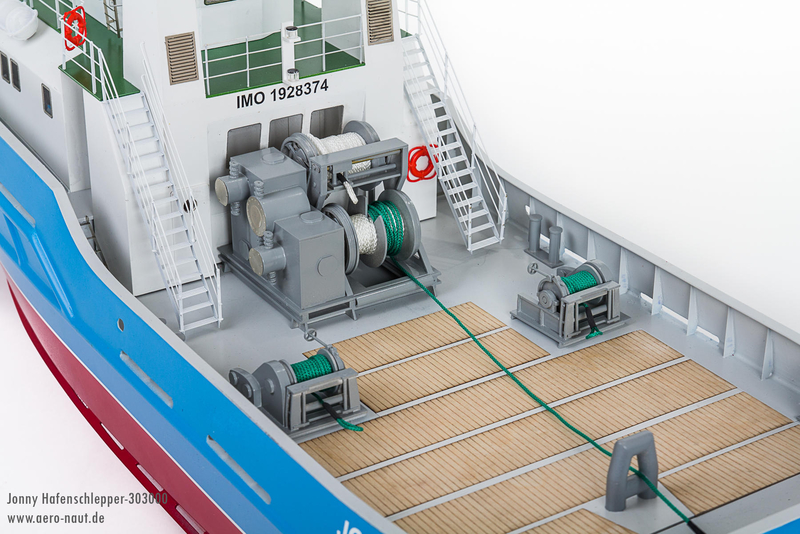

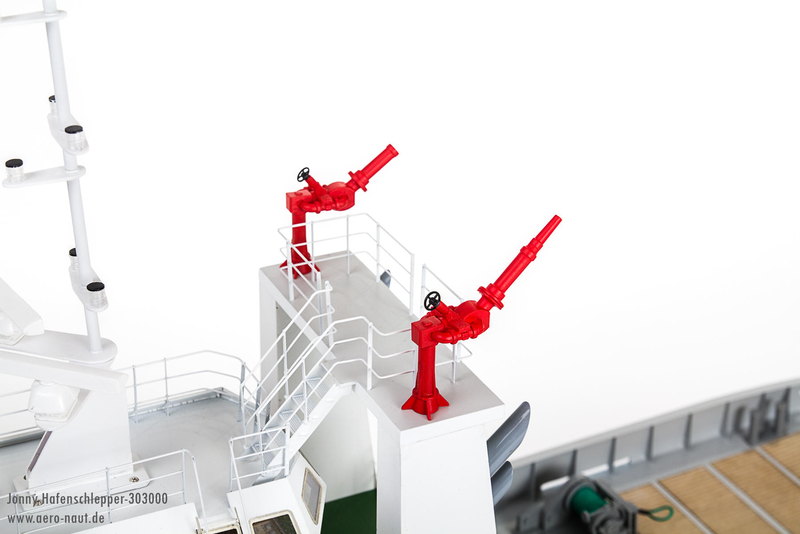

All parts for the expansion with a star roller are included, so that a variant as an offshore tug can also be built. The working deck is covered with laser cut wood. The interior of the wheelhouse is included for individual expansion. Two extinguishing monitors (water cannons) are functional and rotatable. The deck structure is made of ABS and all parts are laser cut to fit precisely and are simply assembled using the familiar construction instructions in aero-naut style with many 3D rendered construction stage drawings. This kit also contains many moving and functional parts such as a tow winch, stop winch, fire monitor, headlights and more.
Jonny comes with an extensive set of photo etched parts made of nickel silver with over 100 etched parts, which turns the model into a real piece of jewelry. The included lamp bodies can optionally be equipped with working LEDs to make the kit light up in darker environments.

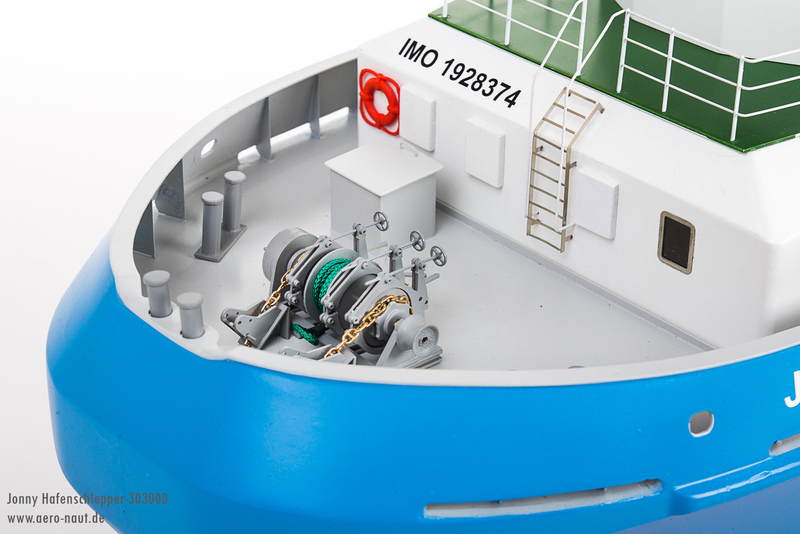

Jonny kit contains: GRP hull with molded rubbing strips, laser-cut parts made of wood, ABS and Vivak, photo etched parts set with over 100 pieces, extensive set of working fittings including an extinguishing monitor, tow winch, stop winches, lamp bodies for further expansion, two ship shafts, and extensive 3D construction instructions.
Width 12.13in (308mm)
Length 38.98 in (990mm)
Draft 4.33 inn (110mm)
Height 26.57 in (675mm)
Weight [g] 14th
Suitable drive (not included in the kit):
2 x Motor Race 720navy order no. 7000/49
2 x Multi 25 controllers order no. 7019/71
1 x lead battery 12V / 7.2Ah order no. 7449/06
1 x propeller 60mm right part no.7174/14
1 x propeller 60mm left part no.7174/13
2 x elastic shaft coupling order no. 7035/60
2 x elastic shaft coupling order no. 7035/66
2 x elastic shaft coupling order no. 7035 / 67
